KIRAAG 701
Product Description

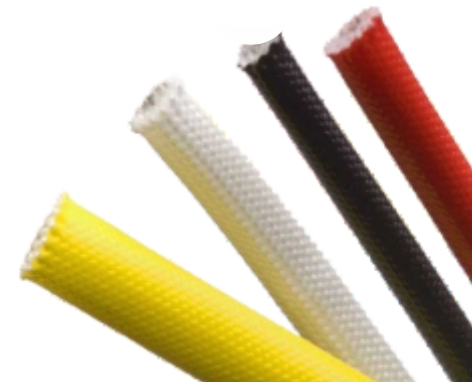

KIRAAG 701 Acrylic Coated Fiberglass Sleeving is made from non-alkali tight Fiberglass braiding that has been thermoplasticized with a special grade Acrylic resin to produce a durable and flexible sleeving capable of withstanding mechanical stress while retaining die-electric properties. It has excellent resistance to alkalis and is resistant to an array of elements, including water, acids, oils, and solvents.
Core Applications
Rotation Machine Core Insulation Ÿ Instrumental Panel Harness
Engine Compartment Harness
Standard Wire Harness.
Motor and Generator Lead Wire protection.
Tubing
Dry and Oil Filled Transformers Lead wire protection
Properties
SLEEVING MATERIAL
Fiberglass Multifilament and Acrylic Resin
EXPANDABILITY
1:1.5
THERMAL CLASS
Class - F
Standard Colour
Natural & Black, Other Colors on request
OPERATING TEMP
-30°C to +155°C
SHELF LIFE
10+ Years under Recommended Storage Conditions
SIZES
0.5mm to 50mm
DIELECTRIC STRENGTH
A–7000 Volts B–4000 Volts C–2500 Volts
Dimensions & Standard Packing
Download
Inner Dia | Dia Tolerance | Wall Thickness | Standard Packing |
---|---|---|---|
0.5mm | ± 0.2mm | 0.50mm ± 0.20mm | 100 Mtrs |
1.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
2.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
3.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
4.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
5.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
6.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
8.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
10.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
12.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
14.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
16.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
20.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
25.0mm | ± 2.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
